Dahua · Coaxial Cable
Dahua DH-PFM930-59N-100 RG59 Coaxial Cable (Per Metre)
Model: DH-PFM930-59N-100
Product images are illustrative; appearance may vary.
Out of stock · Request to order
- OFC copper centre, 75Ω RG59 cableOFC copper centre එකක් තියෙන 75Ω RG59 cable එකක්
- Aluminium foil and braided shieldingAluminium foil සහ braided shielding
- Sold per metreවිකුණන්නේ metre එකකට
Product detailsනිෂ්පාදන විස්තර
Dahua DH-PFM930-59N-100 is an RG59 coaxial cable with a 99.97% oxygen-free copper centre conductor and two shielding layers. The black PVC sheath covers aluminium foil and a copper-clad-aluminium braid.Dahua DH-PFM930-59N-100 RG59 coaxial cable එකේ 99.97% oxygen-free copper centre conductor එකක් සහ shielding layers දෙකක් තියෙනවා. Aluminium foil සහ copper-clad-aluminium braid එකට පිටින් black PVC sheath එකක් තියෙනවා.
H Zone sells this listing per metre. The manufacturer package contains 100m; the pictured carton identifies the cable model. Confirm your cable run and compatible RG59 termination before ordering.H Zone එකේ මේ listing එක විකුණන්නේ metre එකකට. Manufacturer package එකේ 100m තියෙනවා; photo එකේ carton එකෙන් cable model එක පෙන්නනවා. Order කරන්න කලින් ඕන cable length එක සහ ගැළපෙන RG59 connectors confirm කරගන්න.
Specificationsතාක්ෂණික තොරතුරු
Cable / Cable එක
| Model | DH-PFM930-59N-100 |
|---|---|
| Type | RG59 coaxial |
| Characteristic impedance | 75Ω ±5Ω |
| Sheath | Black PVC |
Conductor & shielding / Conductor සහ shielding
| Centre conductor | 99.97% oxygen-free copper |
|---|---|
| Conductor size | 0.81 ±0.1mm,20AWG |
| Insulation | FPE |
| Inner shield | Aluminium foil |
| Outer shield | Copper-clad-aluminium braid,≥60% coverage |
Ordering unit / විකුණන ප්රමාණය
| Selling unit | 1 metre (Meter)විකුණන්නේ metre එකකට |
|---|---|
| Manufacturer package length | 100m |

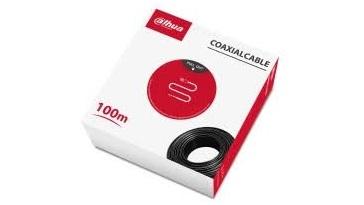

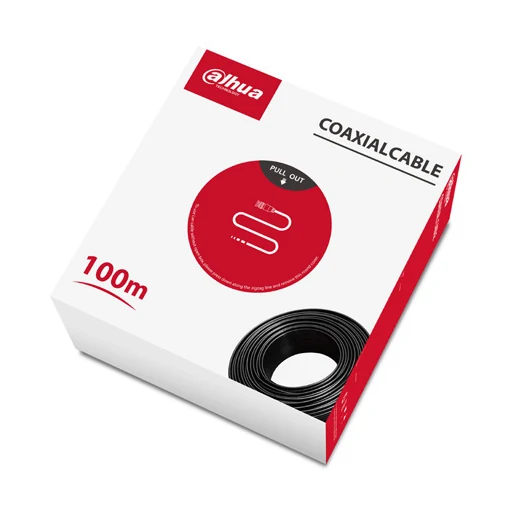

| Product photo | Manufacturer carton; the listed price follows the per-metre selling unit.Photo එකේ manufacturer carton එක පෙන්නනවා. Listed price එක metre එකකට අදාළයි. |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
