Hikvision · Network Switch

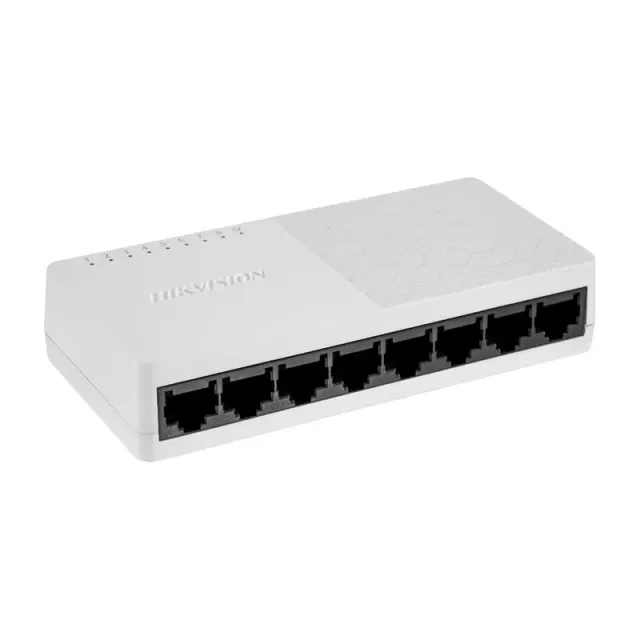

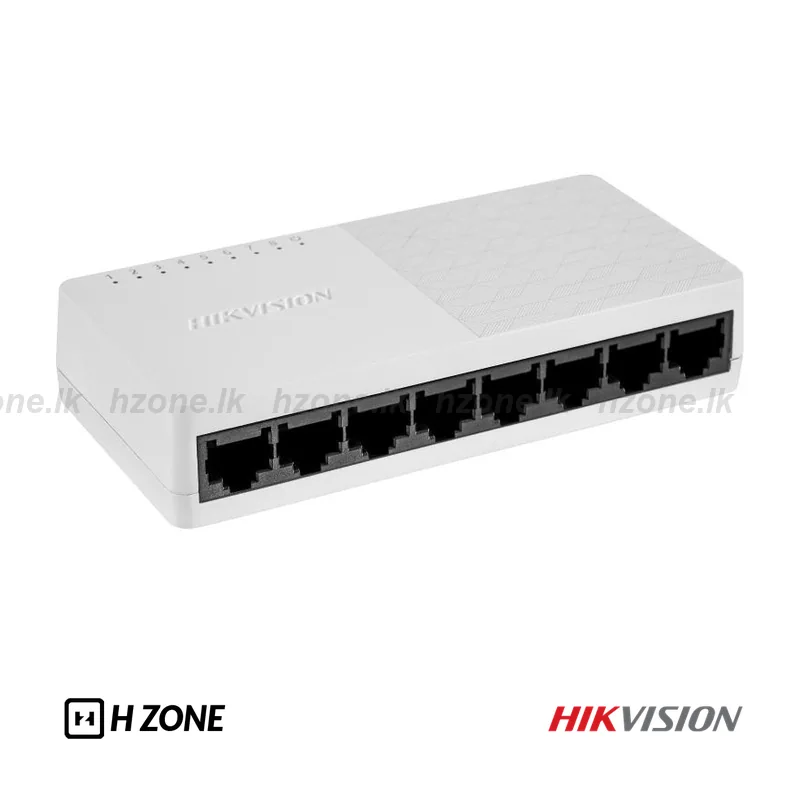

Hikvision DS-3E0508D-O 8-Port Gigabit Switch
Model: DS-3E0508D-O
Product images are illustrative; appearance may vary.
2 Years Warranty
In stock
- 8 × 10/100/1000 Mbps RJ458 × 10/100/1000 Mbps RJ45 සම්බන්ධතා
- Unmanaged plug-and-play wired networkingSwitch configuration නොකර wired devices සම්බන්ධ කරන්න
- Data-only ports; no PoE power outputData සම්බන්ධතා පමණයි; PoE විදුලිය සපයන්නේ නැහැ
- 16 Gbps switching capacity16 Gbps switching ධාරිතාවක්
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-3E0508D-O is a compact 8-port Gigabit switch for a home or small office.Hikvision DS-3E0508D-O ගෙදර හෝ කුඩා office එකක wired network එක පුළුල් කිරීමට ගැළපෙන ports 8ක Gigabit switch එකකි.
Connect the switch to an existing router and add wired devices using Ethernet cables. This switch adds LAN ports; it does not replace the router or provide a Wi-Fi radio. PoE cameras need their own suitable power source or a separate compatible injector.Switch එක දැනට තියෙන router එකට සම්බන්ධ කර Ethernet cables හරහා wired devices එකතු කරන්න. මෙයින් LAN ports වැඩි කරනවා; router එකක් හෝ Wi-Fi radio එකක් ලැබෙන්නේ නැහැ. PoE cameras සඳහා වෙනම ගැළපෙන power supply හෝ injector එකක් අවශ්‍යයි.
Confirm the hardware revision, required accessories and installation with H Zone before ordering. Warranty information, when available, is shown with the current product listing.ඇණවුමට පෙර hardware revision එක, අවශ්‍ය accessories සහ installation එක H Zone වෙතින් තහවුරු කරගන්න. Warranty විස්තර තිබෙන විට current product listing එකේ පෙන්වයි.
Specificationsතාක්ෂණික තොරතුරු
General / සාමාන්‍ය
| Shell | ABS |
|---|---|
| Net Weight | 0.093 kg (0.205 lb) |
| Dimensions (W × H × D) | 124.00 mm × 25.00 mm × 61.00 mm (4.88'' × 0.98'' × 2.40'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supplyවිදුලි සැපයුම | 5 VDC, 1 A |
| Installation Mode | Desk-Mounted |
| Max. Power Consumption | 5 W |
| Surge Protection | 2 KV |
Network Parameters / ජාල විස්තර
| Portsසම්බන්ධක | 8 × Gigabit RJ45 port |
|---|---|
| MAC Address Table | 4 K |
| Switching CapacitySwitching ධාරිතාව | 16 Gbps |
| Packet Forwarding Rate | 11.90 Mpps |
| Internal Cache | 1.5 Mbits |
Approval / සහතික
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
|---|---|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
Selection notes / තෝරාගැනීමේදී
| Power over Ethernet | Not supported |
|---|---|
| Router | Separate router required for routing and internet access |
| Connection | Wired Ethernet; no built-in Wi-Fi |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
