Hikvision · Network Switch

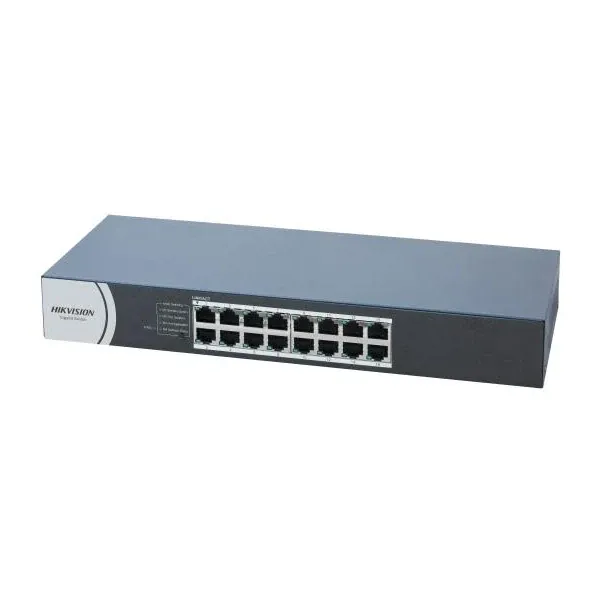

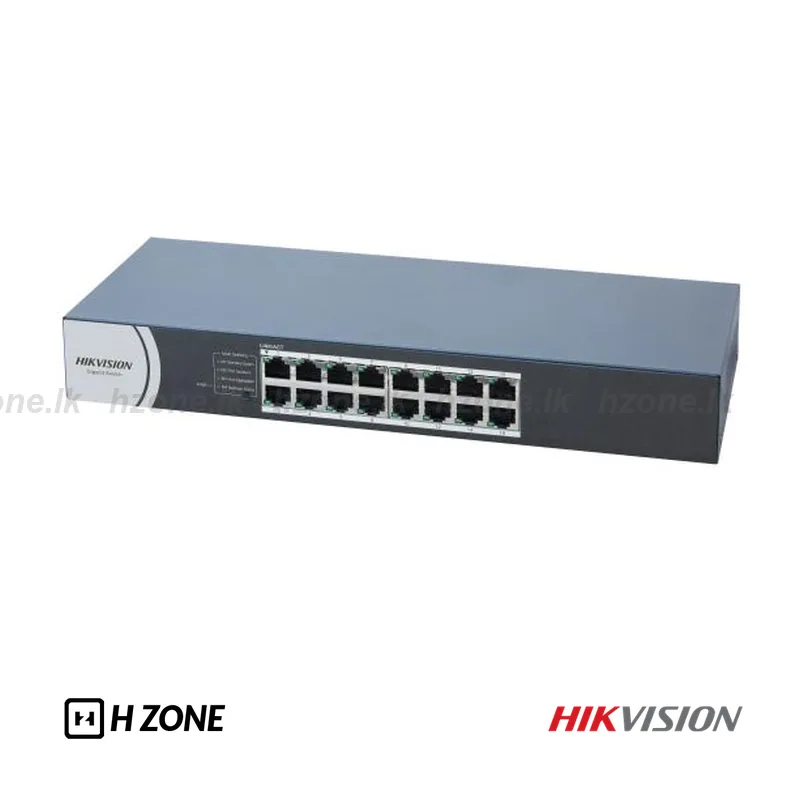

Hikvision DS-3E0516R-O 16-Port Gigabit Switch
Model: DS-3E0516R-O
Product images are illustrative; appearance may vary.
2 Years Warranty
In stock
- 16 × 10/100/1000 Mbps RJ4516 × 10/100/1000 Mbps RJ45 සම්බන්ධතා
- Unmanaged plug-and-play wired networkingSwitch configuration නොකර wired devices සම්බන්ධ කරන්න
- Data-only ports; no PoE power outputData සම්බන්ධතා පමණයි; PoE විදුලිය සපයන්නේ නැහැ
- 32 Gbps switching capacity32 Gbps switching ධාරිතාවක්
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-3E0516R-O is a 16-port Gigabit rack switch for wired network expansion.Hikvision DS-3E0516R-O Wired network එක පුළුල් කිරීමට ports 16ක් සහිත rack-mount Gigabit switch එකකි.
Connect the switch to an existing router and add wired devices using Ethernet cables. This switch adds LAN ports; it does not replace the router or provide a Wi-Fi radio. PoE cameras need their own suitable power source or a separate compatible injector.Switch එක දැනට තියෙන router එකට සම්බන්ධ කර Ethernet cables හරහා wired devices එකතු කරන්න. මෙයින් LAN ports වැඩි කරනවා; router එකක් හෝ Wi-Fi radio එකක් ලැබෙන්නේ නැහැ. PoE cameras සඳහා වෙනම ගැළපෙන power supply හෝ injector එකක් අවශ්‍යයි.
Confirm the hardware revision, required accessories and installation with H Zone before ordering. Warranty information, when available, is shown with the current product listing.ඇණවුමට පෙර hardware revision එක, අවශ්‍ය accessories සහ installation එක H Zone වෙතින් තහවුරු කරගන්න. Warranty විස්තර තිබෙන විට current product listing එකේ පෙන්වයි.
Specificationsතාක්ෂණික තොරතුරු
General / සාමාන්‍ය
| Shell | Metal material, fan-free design |
|---|---|
| Net Weight | 0.9 kg (2.0 lb) |
| Gross Weight | 1.4 kg (3.1 lb) |
| Dimensions (W × H × D) | 327.00 mm × 44.00 mm × 118.00 mm (12.87'' × 1.73'' × 4.65'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supplyවිදුලි සැපයුම | 100-240 VAC, 50/60 Hz, Max. 0.3 A |
| Max. Power Consumption | 12 W |
| Power Consumption in Idle | 2.8 W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
Network Parameters / ජාල විස්තර
| Portsසම්බන්ධක | 16 × Gigabit RJ45 port |
|---|---|
| MAC Address Table | 8 K |
| Switching CapacitySwitching ධාරිතාව | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps |
| Internal Cache | 4.1 Mbits |
Approval / සහතික
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),RCM (AS/NZS CISPR 32: 2015) |
|---|---|
| Safety | CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
Selection notes / තෝරාගැනීමේදී
| Power over Ethernet | Not supported |
|---|---|
| Router | Separate router required for routing and internet access |
| Connection | Wired Ethernet; no built-in Wi-Fi |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
