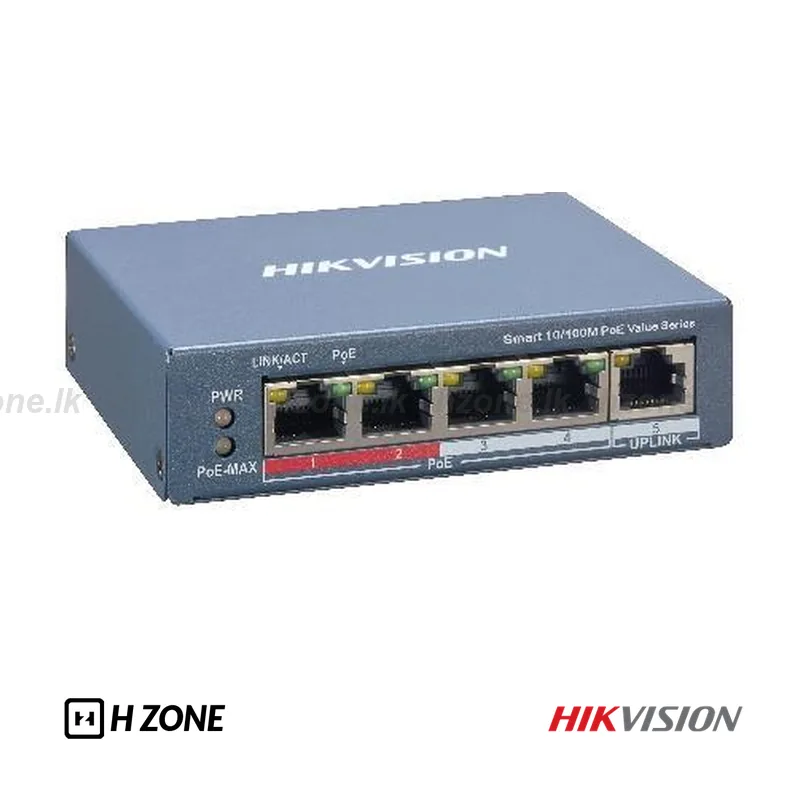

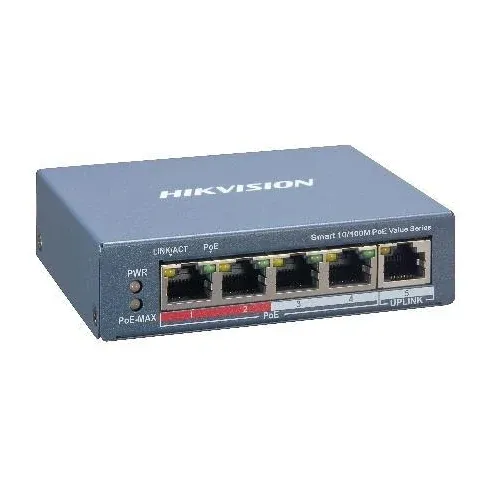

Hikvision DS-3E1105P-EI/M 4-Port Fast Ethernet Smart PoE Switch
Model: DS-3E1105P-EI/M
Product images are illustrative; appearance may vary.
2 Years Warranty
In stock
- 4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 uplink4 × 10/100 Mbps PoE + 1 × 10/100 Mbps RJ45 uplink සම්බන්ධතා
- 45 W shared PoE power budget45 W මුළු PoE power budget එකක්
- Separate uplinks: 1 × 10/100 Mbps RJ45වෙනම uplink සම්බන්ධතා: 1 × 10/100 Mbps RJ45
- Smart management, VLAN and PoE watchdogVLAN සහ PoE watchdog සහිත smart management
Product detailsනිෂ්පාදන විස්තර
Hikvision DS-3E1105P-EI/M is a 4-port smart PoE switch for a small CCTV installation.Hikvision DS-3E1105P-EI/M කුඩා CCTV installation එකක් සඳහා PoE ports 4ක් සහිත smart switch එකකි.
Use the 4 PoE access ports for compatible powered devices and the 1 × 10/100 Mbps RJ45 uplinks for the rest of the network. The 45 W budget is shared across all PoE devices; check each device’s maximum draw before choosing the camera count.ගැළපෙන powered devices සඳහා PoE ports 4 භාවිතා කරන්න. Network එකට සම්බන්ධ කිරීමට 1 × 10/100 Mbps RJ45 uplinks තියෙනවා. 45 W power budget එක සියලු PoE devices අතර බෙදෙන නිසා camera ගණන තීරණය කිරීමට පෙර ඒවාට අවශ්‍ය උපරිම විදුලිය බලන්න.
The PoE access ports are Fast Ethernet (10/100 Mbps). A Gigabit uplink, where specified, does not turn the camera ports into Gigabit ports.PoE access ports 10/100 Mbps Fast Ethernet වේගයෙන් ක්‍රියා කරයි. Gigabit uplink එකක් තිබුණත් camera ports Gigabit වෙන්නේ නැහැ.
Plan cable quality, run length and uplink bandwidth for the connected cameras. Long-range mode, where supported, depends on the camera and cable and can reduce link speed. Use the normal Ethernet distance unless the installation has been checked for the selected mode.Camera සඳහා cable quality, දුර සහ uplink bandwidth ගැළපෙනවද බලන්න. Long-range mode එක model එකේ තියෙනවා නම් එහි ප්‍රතිඵල camera එක සහ cable එක අනුව වෙනස් වන අතර link speed අඩු විය හැක. Long-range setup එක තහවුරු කර නැත්නම් සාමාන්‍ය Ethernet දුර සීමාව අනුව සැලසුම් කරන්න.
Confirm the hardware revision, required accessories and installation with H Zone before ordering. Warranty information, when available, is shown with the current product listing.ඇණවුමට පෙර hardware revision එක, අවශ්‍ය accessories සහ installation එක H Zone වෙතින් තහවුරු කරගන්න. Warranty විස්තර තිබෙන විට current product listing එකේ පෙන්වයි.
Specificationsතාක්ෂණික තොරතුරු
Network Parameters / ජාල විස්තර
| Portsසම්බන්ධක | 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
|---|---|
| Port Type | RJ45 port,full duplex,MDIMDI-X adaptive |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| High Priority Ports | Ports 1 to 2 |
| Forwarding Mode | Store-and-forward switching |
| Working Mode | Standard mode (default),Extend mode |
| MAC Address Table | 2 K |
| Switching CapacitySwitching ධාරිතාව | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Internal Cache | 768 Kbits |
PoE Power Supply / PoE විදුලි සැපයුම
| PoE StandardPoE සම්මතය | IEEE 802.3af,IEEE 802.3at |
|---|---|
| PoE Power Pin | End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power BudgetPoE විදුලි ධාරිතාව | 45 W |
Software Function / Software පහසුකම්
| Device Maintenance | Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration. |
|---|---|
| PoE Configuration | Support PoE configuration. |
| Port Configuration | Support port configuration (rate/duplex/flow control/port enabling), remote configuratio, and 1-2 high-priority ports. |
General / සාමාන්‍ය
| Shell | Metal material, fan-free design |
|---|---|
| Net Weight | 0.2 kg (0.4 lb) |
| Gross Weight | 0.7 kg (1.5 lb) |
| Dimensions (W × H × D) | 105.00 mm × 27.60 mm × 83.10 mm (4.13'' × 1.09'' × 3.27'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supplyවිදුලි සැපයුම | 48 VDC, 1.04 A |
| Max. Power Consumption | 50 W |
Approval / සහතික
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES- 003: Issue 6, 2016) |
|---|---|
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE- LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Selection notes / තෝරාගැනීමේදී
| Power planning | Total connected maximum load must fit the shared PoE budget |
|---|---|
| Compatibility | Confirm device PoE standard, cable and hardware revision |
Performance depends on installation and environmental conditions. Contact H Zone to confirm system compatibility.
